PRODUCT INFORMATION

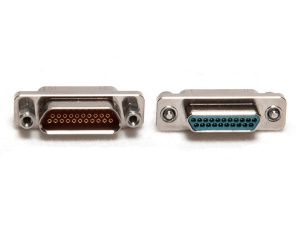

J30J Series Rectangular Connector


   This series of products is equivalent to J30J Products;

   The series of nine products 9,15,21,25,31,37,51,66,74,100cores.

   The product uses flexible pin(twist pin) , high density connection;

   The section area of suitable cable is 0.1-0.15 mm2, so does the cable of section area for 0.07 mm2, but the type of product is special;

   Connectors Retaining Member of this series of products with the requirements of orders for products assembled by the supplier. If not specified in the contract should Retaining Member Connectors.

   The mini-series of products to meet the positioning GJB2446< shell rectangular connector -- General Standards "(equivalent MIL-C-83513) demands.

   The performance standard:

   Technical conditions for Q/Ln.J6-69-92 J30J subminiature rectangular connectors.
